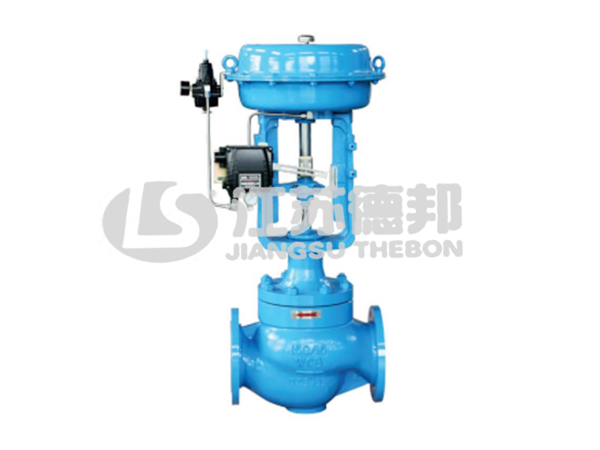

3112E籠式雙座帶平衡環調節閥
3112C
籠式雙座(zuo)調節閥
3112C Cage Double-seat Control Valve
3112E
籠式雙座帶平衡環(huan)調節閥(fa)
3112E Cage Double-seat Balanced-ring Control Valve
適用于常溫高(gao)溫高(gao)壓(ya)差等苛刻工況下(xia)的流體控材，壓(ya)降損失小，允許流通(tong)能力大，可調比大，閥芯采用壓(ya)力平衡結構(gou)(gou)，且在套筒上增加平衡密封(feng)環結構(gou)(gou)，密封(feng)效果好(hao)。
Apply interesting such harsh working conditions of high temperature and high pressure fluid control material, small pressure drop loss, allow the flow capacity is big, adjustable ratio is big, the pressure balance valve core structure, and increase his balance on the sleeve sealing ring structure, good sealing effect.
| 技術規格 TECHNICAL SPECIFICATIONS | |
| 型(xing)號/Model | 3112C,3112E |
| 公稱通徑/Nominal Diameter | (1-1/2A~20A)DN40~DN500 |
| 公稱壓力/Nominal Pressure | ANSI Class150~600,PN1.0MPa~PN10.0MPa |
| 介質溫度/Medlium Temperature | -196~+538℃(高壓時可達565℃，can be up to 565℃；under high pressure) |
| 連(lian)接方(fang)式/Connection Type | 法蘭(lan)式(shi)(RF/MFM/RJ),焊接式(shi)（50A以(yi)下(xia)為SW,80A以(yi)上為BW）Flange(RF、MFM、RJ），Weld ends(SW:2" and under,BW:3" and over) |
| 閥體材(cai)質/Material of Valve Body | WCB、WC6、WC9、CF8、CF8M、CF3M、HC、HB、Monel |
| 閥(fa)內件材質/Material of Valve Trim | 304SS、316SS、316LSS、17-4PH、HC、HB |
| 可調比/Rangeability | 50:1 |
| 流量(liang)特性/Flow Characteristics | 等百(bai)分比(bi)、線性、改良等百(bai)分比(bi) Equal percentage、Linear、ModlifiedEQ% |
| 閥座(zuo)泄(xie)漏量/Valve Seat Leakage | 硬(ying)密封Metal seat:ANSI ClassV,Vor MSS-SP-61 軟(ruan)密封Soft seat:ANSI Class VI |
| 執行機構/Actuator | BM氣動(dong)薄(bo)膜執行機構Pneumatic Diaphragm Actuator QP氣動活塞式執行機構Pneumatic Cylinder Actuator PSL全電(dian)子式執行機構Solid State Electronic Actuator |
